【Topic of This Issue】
Anti‑Sway Secrets for Stacker Cranes:
How to Tame the "Flexible Giant" Running at High Speed?
Technical Lead of This Issue: Zhang Zhenqing

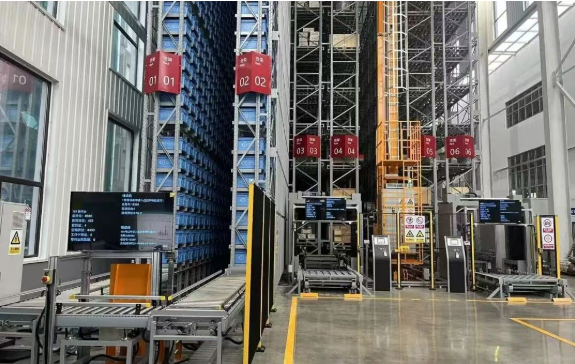

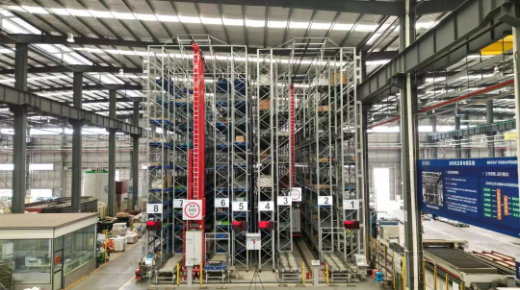

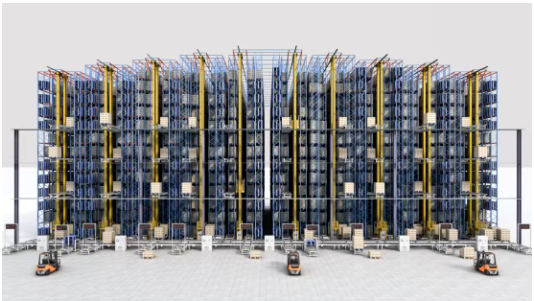

In automated high‑bay warehouses, stacker cranes are undisputed "handling experts". However, as warehousing systems develop toward greater height, higher speed and higher efficiency, a tricky problem emerges — swaying.
Imagine a stacker crane reaching up to 40 meters. During high‑speed start‑stop operations, its column acts like a slender cantilever beam and tends to produce elastic sway. This not only impairs positioning accuracy and reduces operational efficiency, but may also aggravate mechanical wear and even trigger accidents. How to guarantee smooth equipment operation while pursuing efficiency? Today, Sunly Intelligent takes you through the core anti‑sway technologies for stacker cranes.
Root Cause of Sway: Game Between Efficiency and Stability
Stacker crane swaying mainly stems from its slender, tall flexible structural features. At high operating speeds, abrupt changes in speed and torque of the transmission system, as well as minor shocks caused by rail joints and mechanical clearances, will induce and amplify column vibration.
This creates a core contradiction in the warehousing industry: higher running speed and acceleration for better efficiency will inevitably magnify mechanical vibration and sway amplitude. Resolving this conflict cannot rely merely on reinforcing mechanical structures (high cost and long lead time). An intelligent and flexible electrical control system solution is also essential.
Progressive Approach: Anti‑Sway System from Basics to Intelligence. Sunly Intelligent’s anti‑sway solution is not a single technology, but a hierarchically structured and flexibly configurable systematic engineering, aiming to deliver optimal solutions for stacker cranes under diverse working conditions.
1. Fundamentals: S‑Curve Speed Profile — Soften Shocks at the Source
For the conventional trapezoidal speed profile, acceleration changes abruptly during acceleration and deceleration, much like slamming on the accelerator or brakes, which inevitably brings mechanical shocks and vibrations.
Our basic anti‑sway solution adopts S‑curve speed profile planning. It enables smooth transitions of speed, acceleration and even jerk, realizing flexible start‑stop just like an experienced driver. With lightweight algorithms programmed in PLC, most sudden impact forces can be eliminated at the motion‑planning source while ensuring real‑time performance. Actual tests show that this measure alone reduces column sway amplitude by 12.8%.
2. Advanced: Dual‑Closed‑Loop Control — Dynamic Correction for Precise Targeting
Based on the S‑curve, we introduce dual‑closed‑loop control consisting of outer position loop plus inner speed loop.
Inner speed loop: relying on motor encoder to ensure the motor accurately follows S‑curve speed commands.
Outer position loop: high‑precision sensors such as laser rangefinders feed back the actual position of the stacker crane in real time to dynamically fine‑tune speed setpoints.
This combined approach greatly improves one‑shot positioning accuracy, eliminates secondary shocks and residual sway caused by repeated alignment and start‑stop cycles, and enables steadier and more accurate equipment operation.
3. High‑end: Empowered by Intelligent Algorithms — Predict and Suppress Vibration
For high‑rise high‑speed stacker cranes above 25 meters, we adopt cutting‑edge intelligent control algorithms.
Input Shaping : A feed‑forward vibration‑suppression technology. By calculating the natural vibration frequency of equipment, reverse compensation commands are generated and superimposed onto original commands to pre‑neutralize upcoming sway. It delivers remarkable performance with convenient implementation.
Model Predictive Control (MPC) : A premium intelligent dynamic control method. A stacker‑crane dynamic model is embedded in PLC to predict future sway trends and make pre‑emptive interventions. Adopting a composite control architecture of feed‑forward plus feedback, it balances control accuracy, operating efficiency and energy consumption in real time, satisfying stringent working conditions for 40‑meter‑class equipment.
Rapid Deployment: Light‑weight Option with Drive‑built‑in Algorithms
To meet demands for fast project delivery, we also offer anti‑sway solutions built into mainstream drives. For instance, Siemens S120 and S210 series, as well as relevant SEW technologies. Complex PLC programming is not required; anti‑sway functions can be quickly realized via parameter configuration. Featuring fast deployment and high stability, it serves as an ideal choice for standardized and lightweight implementation.
Solution Selection Guide: Tailor‑made Matching for Scenarios
There is no universal best solution, only the most suitable one. We provide hierarchical selection strategies according to different heights and speeds of stacker cranes:
Stacker Crane Type | Recommended Combined Solution | Core Advantages |
Conventional Stacker Crane (<25 m=""> | S‑Curve + Dual‑Closed‑Loop Control | Cost‑effective, performance meets conventional working conditions |
High‑speed Stacker Crane (25~32 m) | S‑Curve + Dual‑Closed‑Loop + Input Shaping | Feed‑forward vibration suppression, easy implementation, suitable for high‑speed & high‑rise scenarios |
Ultra‑high‑rise Stacker Crane (>32 m) | S‑Curve + Dual‑Closed‑Loop + MPC | Predictive intelligent vibration suppression, addressing extreme flexible‑structure working conditions |
Core Competence: Key Performance Indicators of Sunly Intelligent Anti‑Sway Solution
Through collaborative design of mechanical optimization and intelligent electrical control, our anti‑sway solution strikes a balance between efficiency and stability. Key performance indicators are as follows:
Basic Vibration Suppression Effect: Column sway amplitude reduced by 12.8%
Equipment Positioning Accuracy: ≤±3 mm
Operating Speed: 240 m/min
Operating Acceleration: 1.5 m/s²
Applicable Equipment Height: Full‑range stacker cranes from 7 m to 40 m
Sunly Intelligent’s stacker‑crane anti‑sway technologies (closed‑loop adaptive control and model‑predictive intelligent control) are soon to be put into production, realizing full‑range anti‑sway covering acceleration‑deceleration phases and the whole operating cycle. Sunly Intelligent will keep investing in core technologies and deliver more reliable, efficient and sustainable intelligent warehousing solutions for customers.
